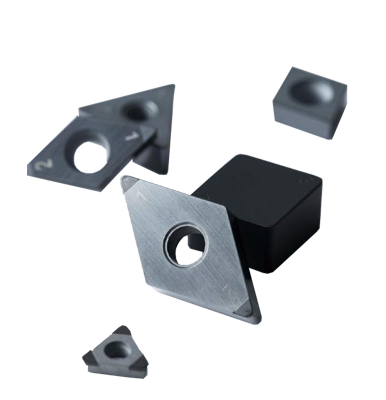

PCBN ve PCD Uçları

Range of PCBN Turning Inserts
PCBN (Negative)

TYPE	Advantages	Rhombic 80°	Rhombic 55°	Square 90°	Triangle 60°	Rhombic 35°	Trigon 80°	Round 360°
Brazed	• Higher precision and longer cutting life • Wide range of insert types • Smaller PCBN tip， space more economical
		CNGA	DNGA		TNGA	VNGA	WNGA
		P068	P069		P071	P072	P073
Solid	• Higher impact resistance • Both sides of the insert can be used for cutting • Suitable for roughing at large cutting depth • Space more economical
		CNGN		SNGN			WNGN	RNGN
		P074		P074			P075	P075
Solid welding	• More cutting edges, both sides of the insert can be used for cutting • Standard hole for easy use in existing tool holders • Higher productive efficiency depth, improving the productive efficiency
		CNGA	DNGA		TNGA	VNGA	WNGA
		P068	P070		P071	P072	P073

Range of PCBN Turning Inserts
PCD (Positive)

TYPE	Advantages	Rhombic 80°	Rhombic 55°	Square 90°	Triangle 60°	Rhombic 35°	Trigon 80°	Round 360°
Brazed	• Higher precision and longer cutting life • Wide range of insert types • Smaller PCBN tip， space more economical
		CCGW	DCGW		TCGW	VBGW
		P076	P076		P077	P079
					TPGW	VCGW
					P078	P079
Solid	• Higher impact resistance • Both sides of the insert can be used for cutting • Suitable for roughing at large cutting depth • Space more economical
				SCGN
				P080

Range of PCD Turning Inserts
PCD (Positive)

TYPE	Advantages	Rhombic 80°	Rhombic 55°	Triangle 60°	Rhombic 35°
Brazed	• More cutting edges, both side of the insert can be used for cutting • Standard hole for easy use in existing tool holders • Higher productive efficiency depth , improving the productive efficiency
		CCGW	DCGW	TCGW	VCGW
		P081	P083	P084	P086
		CPGW		TPGW
		P082		P085
